YCLH Sensor
1 / 1
E-Ink Display: Offers clear visibility with minimal power consumption.
Wireless Connectivity: Utilizes LoRa technology for reliable long-distance transmission.
Seamless compatibility with standard LoRaWAN gateways and network servers.

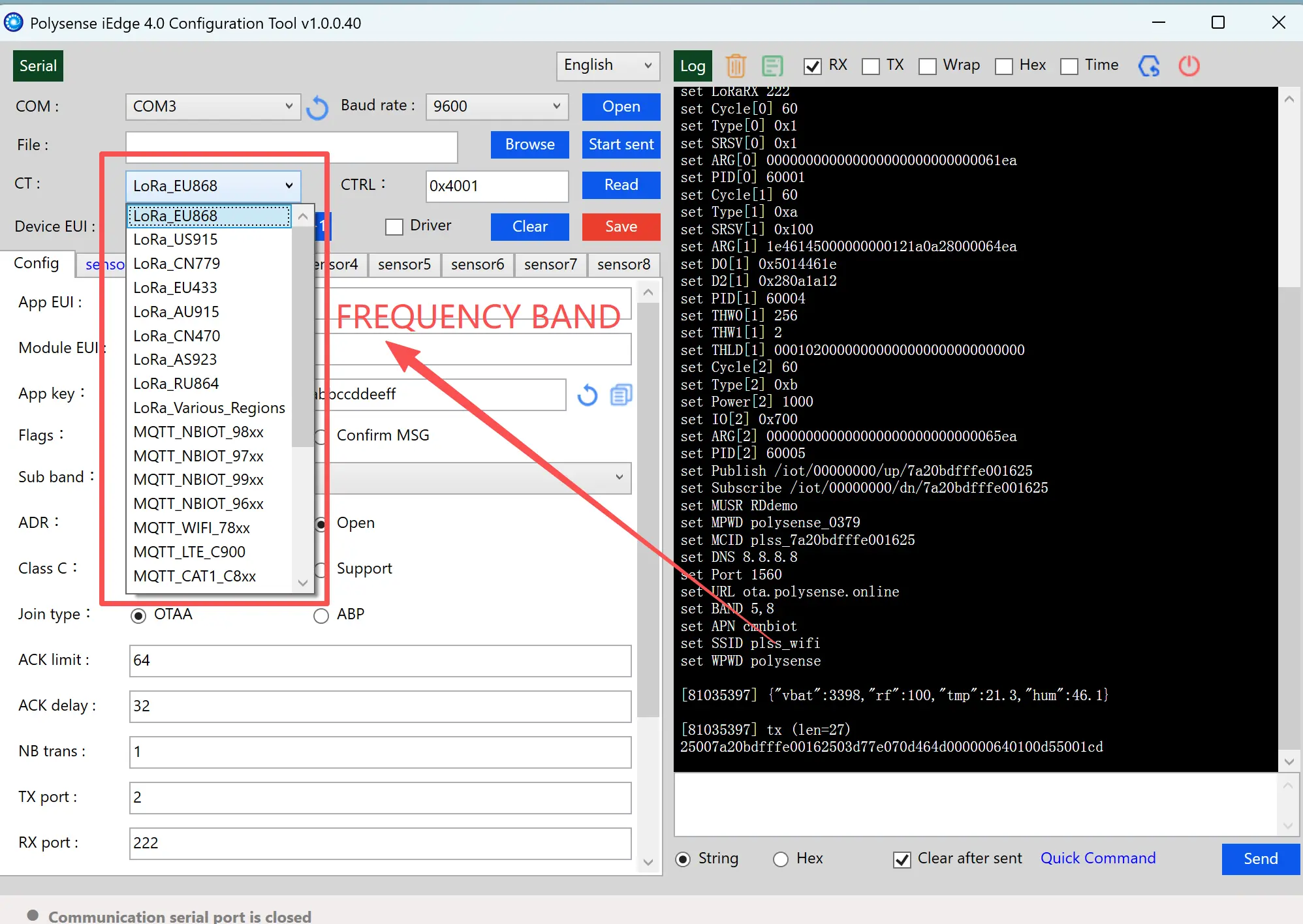

Global Frequency Bands are optional: Supports EU868, US915, AU921, etc.
Support both Class A and Class C modes for flexible balance between power saving and real-time control.
| Measurement Content | Temperature, humidity, battery charge |
| Measurement Range | Temperature: -40 to 85°C; Humidity: 0 to 100%RH (non-condensing) |
| Operating Environment | Temperature: -25 to 65°C; Humidity: 0 to 99.9%RH (non-condensing) |
| Measurement Accuracy | Temperature: ±0.5°C (at 25°C); Humidity: ±3%RH (at 25°C) |
| Power Supply | Battery-powered、Data collection every 30 minutes for a 5-year operational period |
| Communication Protocol | LoRaWAN 1.0.4 Class A/C |
| Transmission distance | 5Km |
| Battery Specifications | ER18505H 3.6V (2 batteries) |

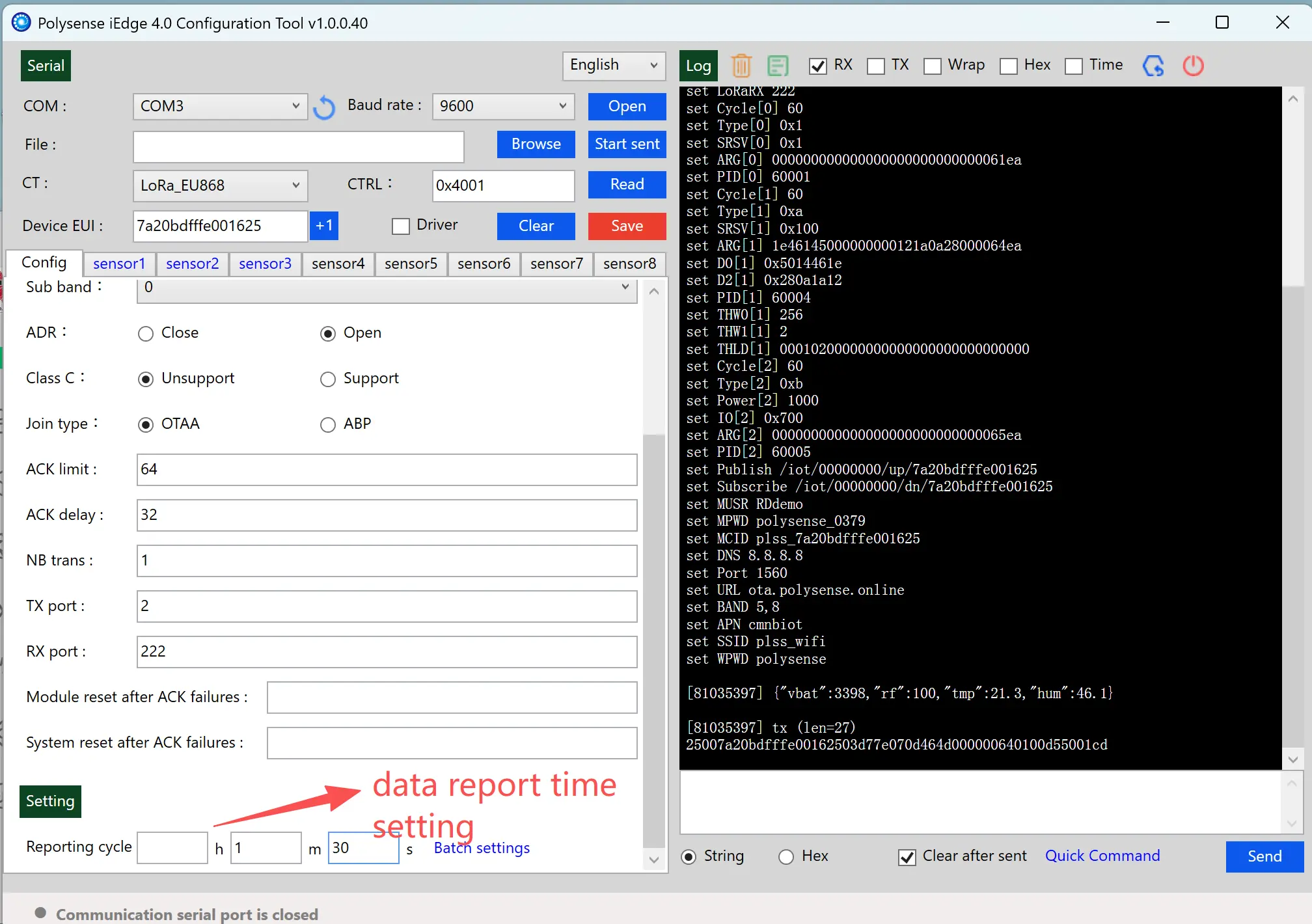

| Collection interval | Customization(1 minute—30 days) |
| Expanded Monitoring | Battery Charge Monitoring |
| Screen Display | 4.2-inch ink screen |
| Installation | Wall-mounted |
| Dimensions | 100*86*28mm |
The sensor features a long-distance wireless transmission capability of up to 5km utilizing LoRa technology, ensuring reliable connectivity with standard LoRaWAN gateways.
Powered by two ER18505H 3.6V batteries, the device has an operational lifespan of up to 5 years, assuming a standard data collection interval of every 30 minutes.

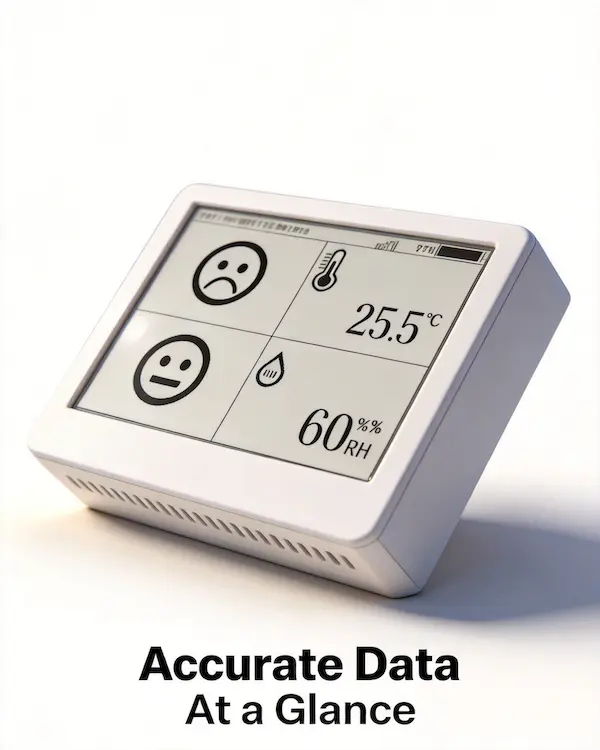

The 4.2-inch E-Ink display provides clear visibility of temperature, humidity, and battery status from various viewing angles while operating with extremely minimal power consumption.
Yes, the device supports optional global frequency bands, including EU868, US915, and AU921, to ensure seamless integration into network servers worldwide.
The sensor measures temperature from -40 to 85°C and relative humidity from 0 to 100%RH (non-condensing). It achieves a high measurement accuracy of ±0.5°C for temperature and ±3%RH for humidity at 25°C.
Yes, the data collection interval is fully customizable to suit your operational requirements, ranging from 1 minute up to 30 days.
